LED Examination Lamp KS-Q7 table clamp type
- Model Number
- KS-Q7 table clamp type
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- Medical Examination Lamp
| Model | KS-Q7 Mobile |
| Lamphead Size | Diameter=89mm, Length =135mm |
| Flexiable arm | 76cm length flexiable plastic sleeve goose neck |
| The maximum height of examination light | 2020mm |
| Input Connected Load | AC100-240V, 50/60Hz |
| Control System | Digital keypad control on the lamphead Switcher on the control box |
| Illumination intensity @ D=30cm | >180,000 Lux |
| Illumination intensity @ D=50cm | >100,000 Lux |
| Diameter of Light Spot | 90-200mm @D=30-100cm |
| Color Temperature | 4500K±10% |
| Color rendering index Ra | Ra>85 |
| Maximum Irradiance at 0.5 m | 300 W/m2 |
| Heat-to-light ratio | 3.2 mW/(m2?lx) |
| Light source | 7x LED bulb |
| Average life time of LED | ≥50000h |
| Power consumption(W) | 15W |
| Class of Protection | Class II |
| Base | detachable square metal tube base with 5 brake casters D=60mm |
| Power Plug Type | European , USA, UK, Austrilian etc. |
| Backup battery working capacity | 6 hours |
| Mounted options | Mobile, Wall, Table, Rail |
KS-Q7 bring high performance with its unprecedented high-class brightness, efficacy, lifetime and quality.
360° flexible goose neck arms ensures the light is easy to move and position and does not drift.
Full strong platic housing make the cleaning process easier and improving the bygience conditions.
Integrated handle allow to direct the light from every position, both frontally and laterally.
Light intensity adjustable by means of digital key-pad control on the lamphead

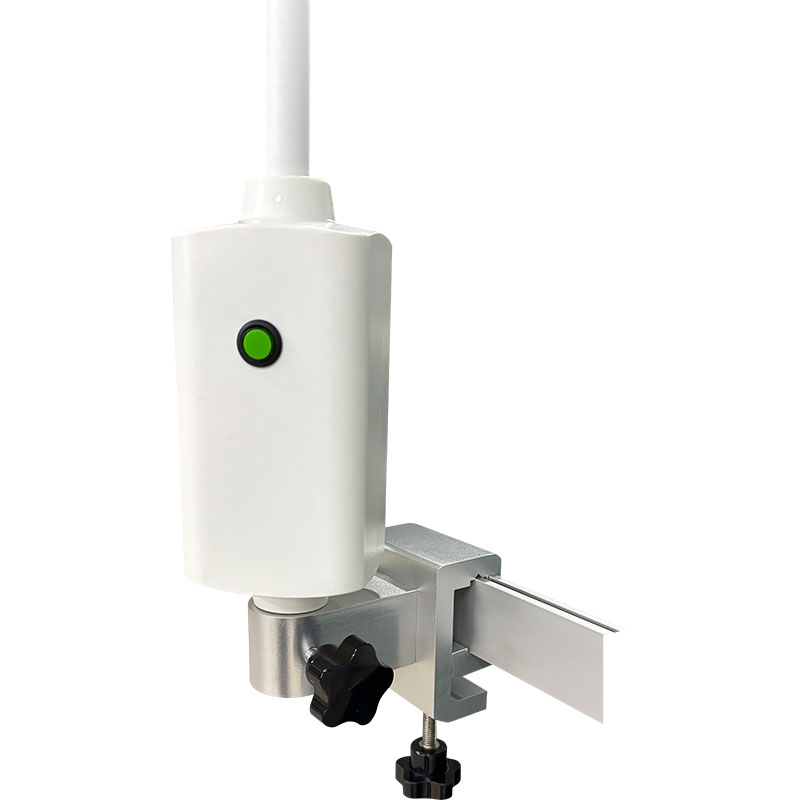

Multifunction Clamp
The clamping table and rail are integrated, and the horizontal and vertical clamping operations are convenient.
They are widely used in surgical beds, medical examination chairs, gynecological beds, nursing rooms, intensive
care units, surgical hanging towers, baby incubators, baby warmers, etc.
