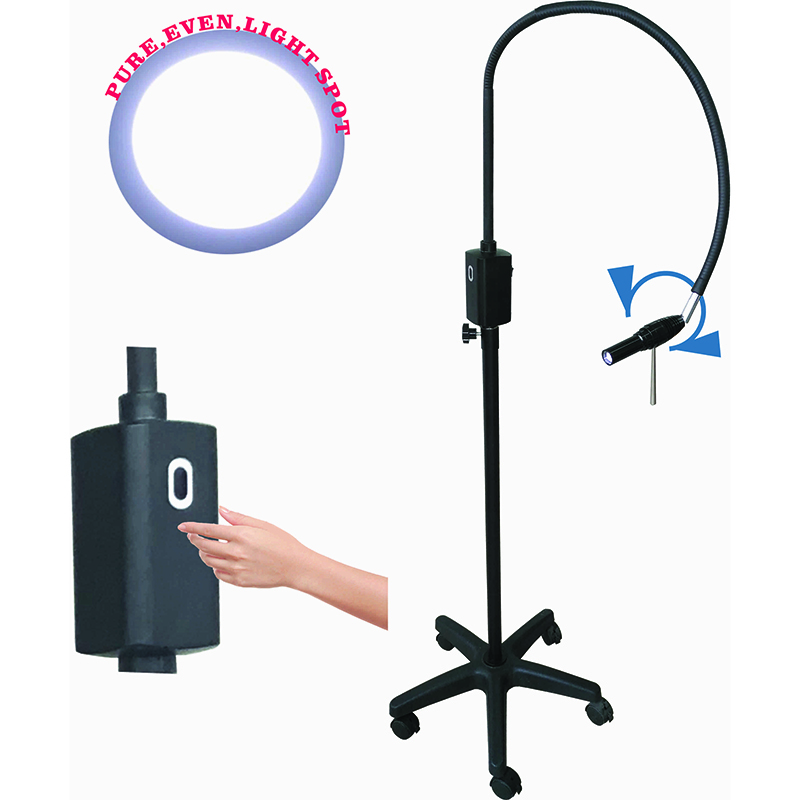

LED Examination Lamp KS-Q5S mobile type

Light Intensity： 18,000 Lux @ D=30cm / 7,000 Lux @ D=50cm

Control System (KS-Q5)： stepless brightness dimmer control

Control System (KS-Q5-3D/5D)： digtial light-touch control

Control System (KS-Q5-3S/5S)： touchless control

Flexiable arm： 100cm length flexiable plastic sleeve goose neck

Lamphead： Diameter=25mm length =130mm handle: 80mm length

Diameter of Light Spot： 70-150mm @ D=30cm Variable

Light source： 1x LED bulb

LED life span： 50,000 hours

Color Temperature： 4800K-6000K

Input Connected Load： 100-260V 50/60MHz

Power consumption： 3W /5W

Class of Protection： Class II

Mounting Options： Mobile, Table, Wall& Rail

Battery type (KS-Q5-3B/5B)： 1800mAh 8 hours work

Hard anodizing of full aluminum alloy lamphead is to improve corrosion resistance, wear resistance, weather resistance, insulation.

Precision multiple lens optical system providehomogeneous illumination and clearly defined light spot.

Spot size is adjusted by inner mini light grating systemwith Zoom circle on the lamphead

Super long 100cm flexiable plastic coated goose neckensure the no-dead angle and manoeuvrable positioning

Standard detachable powder coated steel base(DM01) with 5xAntistatic and lockable plastic casters or option with plastic base (ABS01)

Standard dimmer control ,with other optional gesture controls and battery make the control more comfortable and efficient.

Pre-focused spot available for OB/GYNs, urologists, family practitioners, hospitals, clinics and LDRs

The floorstand (DM01 or ABS01), wall mounting (WM01),

Table clamp(TC01) for tighter spaces;

Rail mounted bracket(RC01 or RC02) that can be attached toa bed raid ,wall rail, or surgical table rail.
