LED Operation Lamp KS-3030 ceiling type double arm with camera
- Model Number
- KS-3030C
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- medical lamp,medical light,surgical lamp,surgical light,examination lamp,examination light,reading light,x ray viewer,headlight,magnifying lamp
| Model | KS-300 Series |
| External Lamphead Diameter | 376mm |
| Input Voltage | 100-240V |
| Illumination intensity Ec @100cm distance | 120,000Lux±20% |
| Adjustable Light field size @100cm distance | 150-250mm（3 levels adjustable） |
| Illumination light field diameter D10 | 215mm |
| Adjustable Color temperature | 3500-5500K(5 Levels) |
| Color rendering index Ra | 96 |
| Red color rendering index R9 | 96 |
The ratio of irradiance Ee to Ec | 3.8mW/(m2?lx) |
| Number of LED modules | 30pcs |
| Average life time of LED | ≥50000h |
| Power consumption (VA) | 50(Single),100(Dual) |
| Standard function | Intensity/Color temperature/light spot adjustable ,Endo mode,Synchronic/mutual control(dual head), Camera parameter adjustable(camera) |
| Mounted Type | Ceiling:Double/Single arm,Mobile,Wall mounted,Battery Back-up |

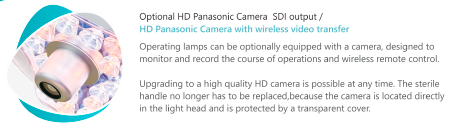

| Option | Integrated Panasonic HD camera,32 inch medical 4K monitor ,wall mounted control,remote control |
| Model of Camera | Panasonic FHD Camera FHD82 |
| Image sensor | 1/3 inch CMOS Panasonic |
| Effective pixel (Resolution) | 2,300,000.00 Million pixel (1920H×1080V) |
| Resolution (video) | 1080P@60FPS |
| Exposure control | Auto compensation |
| White balance control | Auto matic,automatic tracking white balance,one button,manual |
| Digital focus zoom | 12x(120x with optical zoom) |
| Video output | HD-SDI or Wireless |
Advantages of LED Technology
LED technology is a technology of the future, environmental friendly. Easywell operating lamps
have been manufactured with the highest concern for the natural environment.The high efficiency
of these light sources results in low energy consumption.Indirectly it affects the reduction of carbon
emission and contribute to stop global warming. Low energy consumption is also a measurable
economic benefit.
LED technology also helps to protect our health. Light Source in LED technology produces
no harmful UV rays.
Light intensity adjustment system provides constant light field distribution in the whole range
of intensity control.
Light field diameter adjustment system maintaining a constant level of light intensity over the
entire range of adjustment.
