LED Examination Lamp KS-Q7-02A Rail/Table
- Model Number
- KS-Q7-02A Rail/Table
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- medical lamp,medical light,surgical lamp,surgical light,examination lamp,examination light,reading light,x ray viewer,headlight,magnifying lamp
| Model | KS-Q7 02A |
| Lamphead Size | Diameter=89mm, Length =135mm |
| Flexiable arm | 106cm length joionted articulated aluminium arm |
| Input Adaptor | AC100-240V, 50/60Hz |
| Control System | Digital keypad control on the lamphead |
| Illumination intensity @ D=30cm | >180,000 Lux |
| Illumination intensity @ D=50cm | >100,000 Lux |
| Diameter of Light Spot | 90-200mm @D=30-100cm |
| Color Temperature | 4500K±10% |
| Color rendering index Ra | Ra>85 |
| Maximum Irradiance at 0.5 m | 300 W/m2 |
| Heat-to-light ratio | 3.2 mW/(m2?lx) |
| Light source | 7x LED bulb |
| Average life time of LED | ≥50000h |
| Power consumption(W) | 15W |
| Class of Protection | Class II |
| Base | detachable square metal tube base with 5 brake casters D=60mm |
| Power Plug Type | European , USA, UK, Austrilian etc. |
| Backup battery working capacity | 6 hours |
| Mounted options | Mobile, Wall, Table, Rail ,Ceiling |
KS-Q7 bring high performance with its unprecedented high-class brightness,efficacy, lifetime and quality.
Full strong plastic housing make the cleaning process easier and improving the hygien ceconditions.
Integrated handle allow to direct the light from every position, both frontally and laterally.
Light intensity adjustable by means of digital key-pad control on the lamphead
Articulated arm ensures the light is easy to move and position and doese not drift. No dead-angle examination and
long reach range is presented.

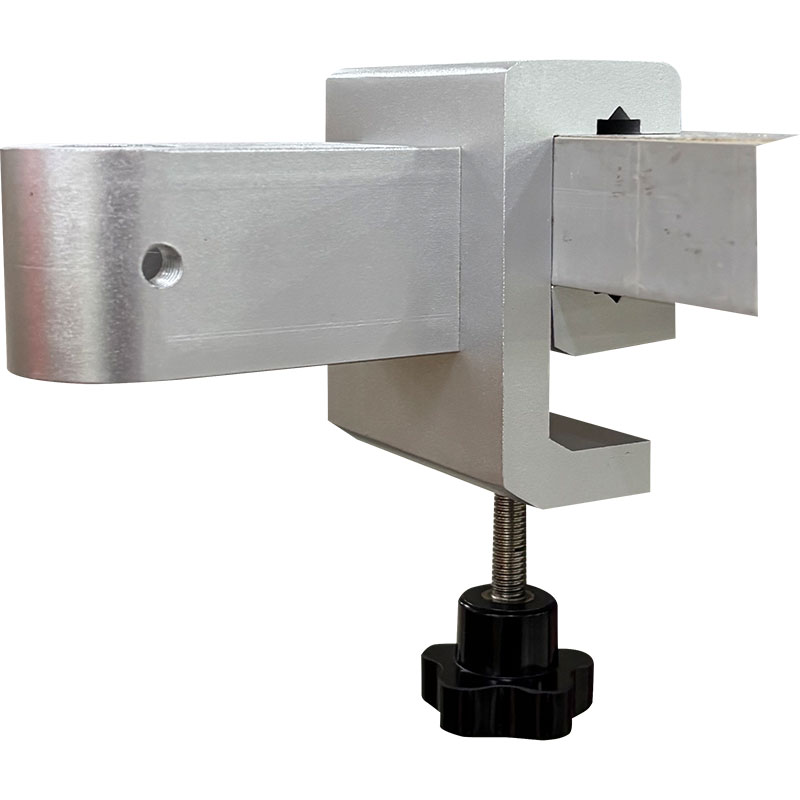

Multifunction Clamp
The clamping table and rail are integrated, and the horizontal and vertical clamping operations are convenient.
They are widely used in surgical beds, medical examination chairs, gynecological beds, nursing rooms, intensive
care units, surgical hanging towers, baby incubators, baby warmers, etc.
