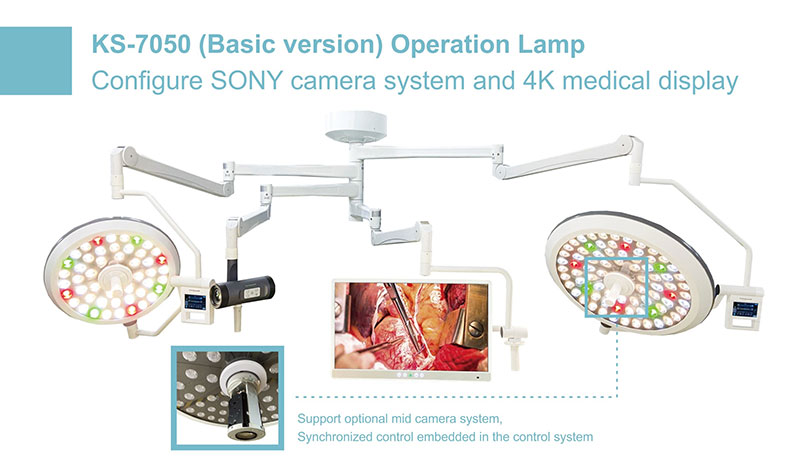

LED Operation Lamp KS-7050 Ceiling type double lamphead with camera
- Model Number
- KS-7050 Ceiling type double lamphead with camera
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- medical lamp,medical light,surgical lamp,surgical light,examination lamp,examination light,reading light,x ray viewer,headlight,magnifying lamp
| Title | KS-700 | KS-500 | |
| External Lamphead Diameter | 700mm | 500mm | |
| Primary Voltage | AC 100-240V | AC 100-240V | |
| Illumination intensity Ec @100cm distance | 160,000Lux | 150,000Lux | |
| Illumination intensity Ec @120cm distance | 160,000Lux | 150,000Lux | |
| Adjustable Color temperature | 3500-5500K | 3500-5500K | |
| Color rendering index Ra | 97 | 97 | |
| Red color rendering index R9 | 97 | 97 | |
| Number of LED modules | 80 | 48 | |
| Average life time of LED | ≥50000h | ≥50000h | |
| Power consumption(W) | 75 | 65 | |
| The ratio of irradiance Ee to Ec | 3.6mW/(m2?lx) | 3.6 mW/(m2?lx) | |
| Gesure Control for the lighting | Option | ||
| Integrated Central Camera | Option: FHD/ 4K Wirelless | ||
| Individual Camera Arm | Option: FHD/ 4K Wirelless | ||

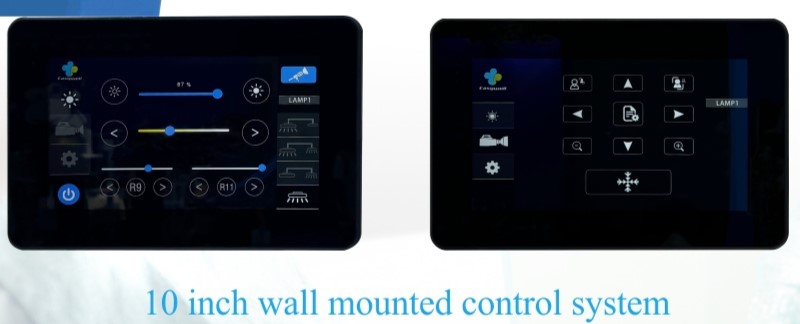

| Wall mounted Control (Option) | 10 inch cable ETC-10 /wireless ETC-10W | ||
| Remote Control (Option) | 5 inch ETC-5W | ||
| Mounted type | Ceiling: Quadruple/ Triple/Double/Single arm ,Mobile , Wall mounted, Battery Back-up | ||
| Model of 4K monitor | EM32-4KA |
| Size (Inch) | 31.5" |
| Resolution | 3840 X 2160 |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.18159mm x 0.18159mm |
| Brightness (Typ.) | 600 cd/m2 |
| Color Gamut | 100% sRGB、98% DCI |
| Color Depth | 1.07 Billion colors |
| Contrast Ratio (Typ.) | 2000:1 |
| Response Time | 14ms |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (typical) (up/down/left/right） |
| Video Output | HDMI1.4,HDMI2.0,DP,SDI,REMOTE |
| Langue | English, Simplified Chinese, Korean, Russian, Spanish, Japanese, French |
| Model of Camera | CAM-FHD01 |
| Image sensor | 1/2.8 inch Exmor CMOS SONY |
| Effective pixel | 2,380,000.00 Million pixel |
| Resolution (video) | 1080P@60FPS |
| Exposure control | Auto, manual, priority mode (shutter priority & aperture priority), brightness, EV compensation, slow AE |
| Backlight compensation | yes |
| White balance control | Automatic, automatic tracking white balance, indoor, outdoor, outdoor automatic, sodium lamp (fixed / automatic / outdoor automatic), one button, manual |
| Camera lens | 30x optical zoom |
| F = 4.3mm (wide-angle end) to 129.0mm (far end) | |
| F1.6 to F4.7 | |
| Digital focus zoom | 12x (360x with optical zoom) |
| Focus system | Auto (sensitivity: normal, low), one button auto focus, manual, interval auto focus, auto focus triggered by zoom, focus compensation when ICR mode is on |
| Video output | HD-SDI |
New cold light source extends service life:
Adopting a new type of LED cold light source, it is energy-saving, environmentally friendly, and has a long service life of up to More than 60000 hours. The doctor's head temperature is less than ＜1 ℃. The color rendering performance is good,Excellent color temperature consistency.
Perfect cold light effect:
The new LED cold light source does not produce infrared and ultraviolet radiation, and is a halogen-free shadowless lampThe temperature rise and tissue damage caused by the wound accelerate postoperative wound healing,And there is no radiation pollution. LED color temperature is constant, and the color temperature and color do not decay,Soft and non glaring, very close to natural sun light.
Excellent shadowless effect:
The lamp head adopts the most scientific curvature and multi-point light source design to enhance the illumination of the light spot More uniform, it can also achieve the same effect when the surgical light is partially obstructed Perfect shadowless effect, with a turning radius of ≥ 182cm for the lamp panel,The lamp head can be pulled down close to the vertical ground, making it convenient for lighting at various angles.
Excellent deep lighting:
Multiple LED light beams focus and illuminate, producing a depth illumination of over 1200 millimeters of light beams,And provide adjustable color temperature of 3500K-5500K close to natural sunlight,Realistic reflection of human tissue color, fully meeting various surgical lighting needs.

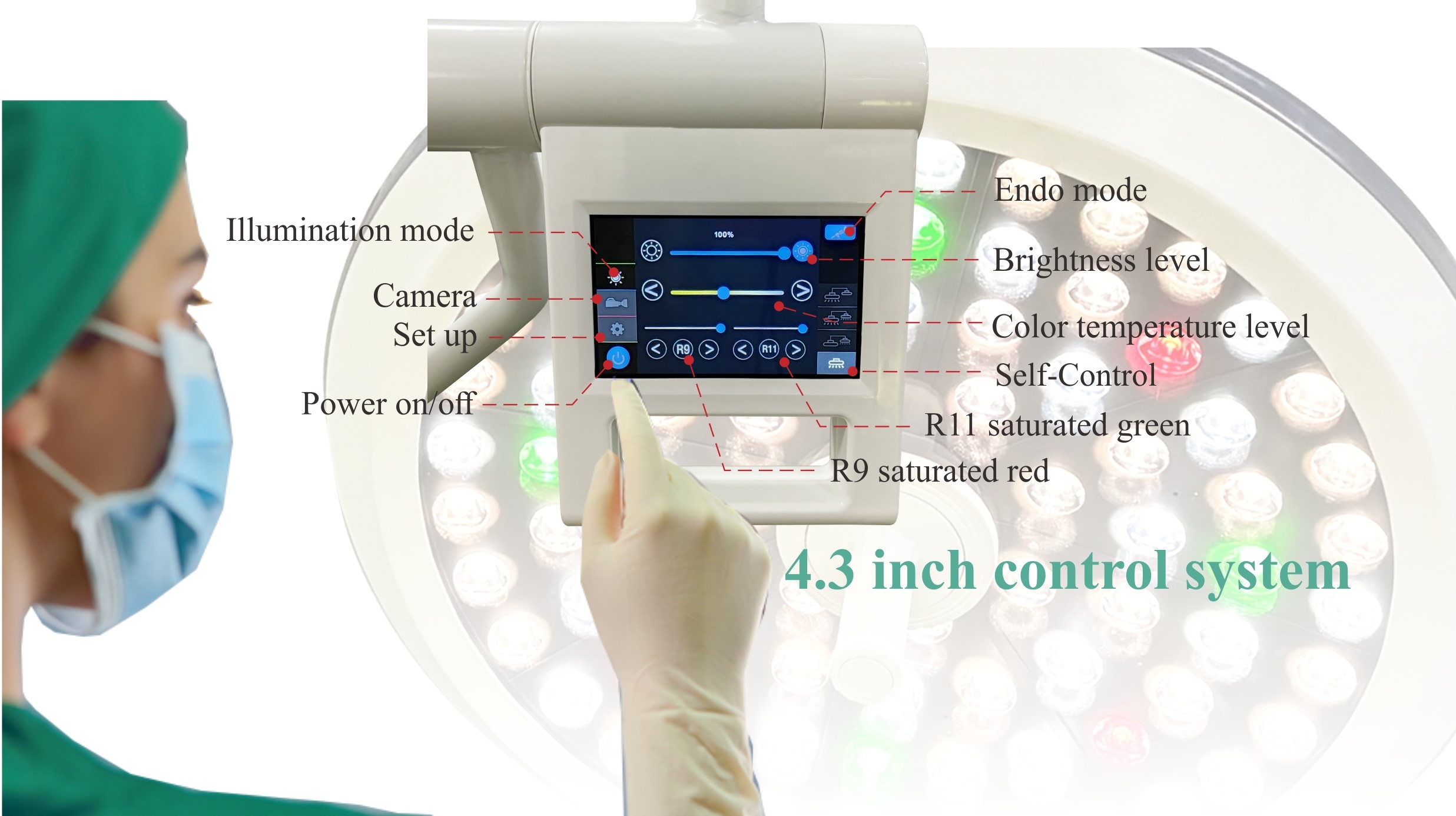

Advanced control system:
It can be adjusted for illumination, color temperature, and finger display to meet high illumination requirements,Adjust the lighting parameters according to the needs of different surgeons, so that surgeons have a better under standing of the light Perceived softly without dazzling; The optical circuit is controlled by MCU, and the brightness of the light area is controlled by MCU Uniform increase or decrease in color temperature adjustment, with brightness memory function;Electronic dimming spot; Mutual control and synchronous control (optional).
Optional:
