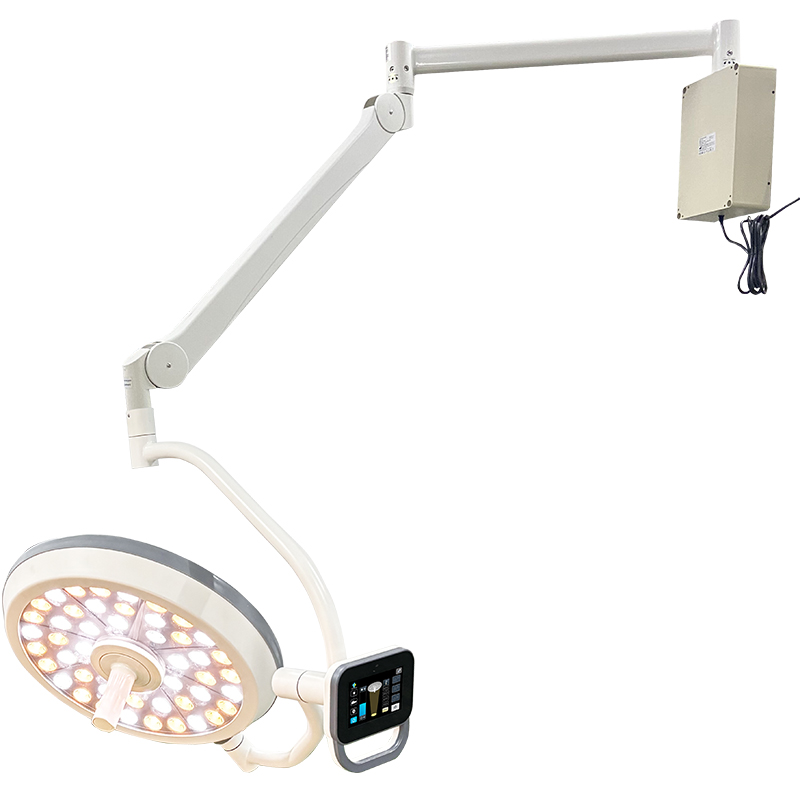

LED Operation Lamp KS-500 wall type single lamphead
- Model Number
- KS-500 wall type single lamphead
- Place of Origin
- CHINA
- Price
- Distributor Price ＄
- Views
- Keywords
- medical lamp,medical light,surgical lamp,surgical light,examination lamp,examination light,reading light,x ray viewer,headlight,magnifying lamp
| Title | KS-500 standard |
| External Lamphead Diameter | 500mm |
| Primary Voltage | 100-240V |
| Secondary Voltage | 24V |
| Illumination intensity Ec @1m distance | 20,000Lux-160,000Lux |
| Adjustabel light field size | 200-380mm |
| Color rendering index Ra | >85 |
| Color rendering index R9 | >85 |
| Remaining lighting with one tube (%) : | >99.9% |
| Remaining lighting with one mask (%) : | >40% |
| Remaining lighting with two masks (%) : | >50% |
| Remaining lighting with one tube and one mask (%) : | >40% |
| Remaining lighting with one tube and two masks (%) : | >50% |
| The total radiation intensity Ee | 511 W/m2 |
| The ratio of irradiance Ee to Ec | 3.2 mW/(m2·lx) |
| Number of LED modules | 48 |
| Average life time of LED | ≥50000h |
| Power consumption(W) | 85 |
| Touchscreen control | 4.3 inch |
| ENDO Mode | YES |
| Mechanical Focalization | YES |
| Memory function | YES |
| Standards: CE marked, according to 93/42 Directive and UE Rule 2017/745 (MDR) EN 60601-1, EN60601-1-2 and EN 60601-1-2-41 | |
Removable, sterilizable handle can be used to
adjust the focus. Mannual focus mechanism
shows accurate focusing, excellent shadowless
and depth the operator intends for every position
4.3" LCD touchscreen control
The touch screen displays all functions clearly with
integrated visual feedback.
The balance system adopts imported arm
spring components, which is light in weight,
easy to handle and accurate in positioning, and
can provide the largest adjustment range.
